Ansys Motor-CAD
Electric Machine Design Software

Ansys Motor-CAD is a dedicated electric machine design tool for fast multiphysics simulation across the full torque-speed operating range.

Fast multiphysics simulation across a full torque-speed operating range

Motor-CAD enables design engineers to evaluate motor topologies and concepts across the full operating range, to produce designs that are optimized for performance, efficiency and size. Motor-CAD software’s four integrated modules—EMag, Therm, Lab, Mech—enable multiphysics calculations to be performed quickly and iteratively, so users can get from concept to final design in less time.

  • Motor-CAD
    Intuitive, Template-Based Set Up
  • Motor-CAD
    Full Operating Range Design
  • Motor-CAD
    Built-in EM, Thermal and Mechanical Solvers
  • Motor-CAD
    Thermal Sizing of Machines

Quick Specs

Fast calculations and streamlined data input processes leave time for Motor-CAD users to explore more motor topologies and fully assess the impact of advanced loss effects in the initial stages of an electromechanical design.

  • Template-based magnetic topologies
  • 2D FEA coupled with analytical solution
  • DXF and scriptable geometries
  • CFD, FEA and empirical correlations
  • Template-based cooling topologies
  • Temperature dependent Duty-Cycle
  • Multi-slice skew
  • Efficiency and loss maps calculations
  • 3D Coupled Thermal-Fluid Network
  • Linear structural 2D FEA
  • Steady-state and transient thermal

JULY 2022

What's New

The Ansys 2022 R2 Update includes a host of new capabilities for Ansys Motor-CAD, such as significant improvements to the synchronous machine lab model, further enhancements of the NVH solution, and RPC automation through Python.

Motor- CAD Lab Results
Multi-physics Optimization Workflows with optiSLang

The resolution of the unique synchronous machine lab model available in Motor-CAD can now be customized and defined by the user enabling high fidelity efficiency map, torque/speed curve, and drive cycle calculations.

TFR Ansys Sound
NVH Enhancements

Improvements in the NVH solution include the infinite cylinder acoustic model, weighting options, and export to Ansys sound.

RCP Automation
RPC Automation through Python

RPC automation through Python enables more control over automated Ansys Motor-CAD instances.

MOTOR-CAD CAPABILITIES

Integrated Multiphysics Analysis Software for Electric Motor Design

With decreasing development cycles, motor designers need to make design decisions quickly, and with certainty that they will not face problems down the line. Fast calculations and streamlined data input processes leave time for Motor-CAD users to explore more motor topologies and fully assess the impact of advanced loss effects in the initial stages of a design.

Motor-CAD software’s intuitive, template-based setup and embedded multiphysics expertise simplifies the design process and reduces reliance on multiple teams for specific electromagnetic, thermal or mechanical experience — so motor designers can keep more control over their designs.



Key Features

Motor-CAD delivers high-fidelity, 2D/3D analysis capability enabling users to analyze end-effects, demagnetization, core loss, hysteresis and other advanced electromagnetic phenomena, calculate the thermal envelope for operation and design complete motor cooling systems

  • Template-Based Electromagnetic and Thermal Design
  • Electromagnetic-Thermal-Control Coupling Simulation
  • Design for Field Weakening
  • Temperature Dependent Continuous-Torque and Peak-Torque Simulation
  • Manufacturing Effects and Housing Interfaces.
  • Ratio-Based Optimization
  • Magnetic Force Analysis
  • Rotor Stress Analysis

Ansys Motor-CAD connects to Ansys Maxwell for advanced 2D and 3D electromagnetics analysis. For electric machine noise and vibration and (psycho-acoustic) sound prediction, Ansys Motor-CAD integrates with Mechanical and VRXPERIENCE. It also connects with Ansys CFD solvers and leverages air, water and oil based cooling techniques for cooling system design and analysis, as well as provides feedback into the Motor-CAD’s thermal model.

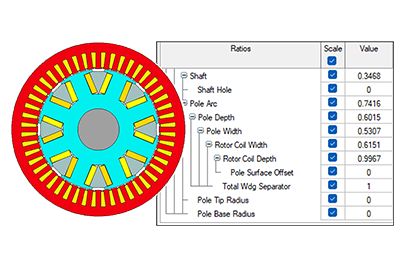

Comprehensive and powerful geometry templates enable the complete electric machine design space to be explored. Templates cover a huge range of electric machine technologies, topologies and cooling systems. Ratio based parameterization options are a new addition which provide unprecedented capabilities for parametric design optimization.

Coupled multi-physics analysis from the start of the design process and in-built control algorithms enables virtual testing considering temperature effects over transient drive cycles or at steady state.

Design of modern electric machines requires performance analysis over the full torque/speed operating range. Motor-CAD enables designers to easily and quickly analyze the performance of their designs over the operating envelope, including field weakening behavior.

Rapidly evaluate designs against the complete multi-physics performance requirements such as peak and continuous torque/speed characteristics.

Any electric machine simulation requires understanding of the manufacturing effects and the impact of variation in the manufacturing process on performance. Motor-CAD has built in knowledge to guide engineers in configuring the manufacturing effects appropriately and enables straightforward sensitivity analysis to understand the impact of manufacturing variation on performance.

Motor-CAD is the ideal tool to use for optimization of electric machine designs. Powerful ratio-based optimization enables the design space to be explored easily while the coupled multi-physics analysis enables evaluation of each candidate design against the complete performance specification.

Automatically extract and visualize magnetic forces as a function of time and space, over the full operating range. Enabling NVH analysis of a design.

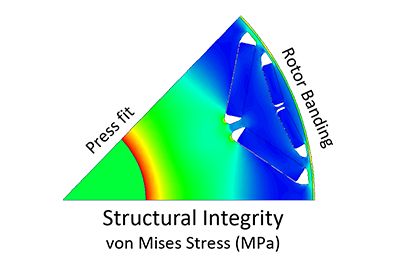

Rapid, automatic FEA based rotor stress analysis enables engineers to easily optimize rotor designs and trade-off between electromagnetic performance and mechanical constraints.

MOTOR-CAD RESOURCES & EVENTS

Featured Webinars

On Demand Webinar
Ansys Webinar
Accelerating Traction Motor Design for xEVs using Ansys Motor-CAD

Learn about Ansys solutions for traction motor design and simulation, including key challenges such as front-loading design decisions early in the development stage, and electric vehicle traction motor design workflow.

On Demand Webinar
Ansys webinar
Rapid Electric Motor Design — Evaluation of an Induction Motor Against the Performance Specification

Learn how Ansys Motor-CAD can rapidly evaluate a candidate induction machine design using multiphysics analysis against the complete specification, including continuous torque/speed characteristics and drive cycle efficiency.

Webinar Series
Ansys Electric Machine Webinar
Electric Machine Webinar Series

This webinar series focuses on design and analysis of electric machines, and presents many of the technology capabilities offered by Ansys simulation tools including full-length presentations as well as short demonstrations.


White Papers & Articles

ansys white paper Electric Motors

Performance Analysis of Electric Motors for EV Powertrains

Learn how Ansys Motor-CAD simulations can help you determine whether an interior permanent magnet (IPM), an induction magnet (IM) or a wound field synchronous magnet (WFSM) is the best motor design for an EV.
