ACCELERATE YOUR MANUFACTURING PROCESS
Gain insights through automated workflows to eliminate the risk of distorted or out of tolerance parts, and ensure high quality components.
JANUARY 2023
Ansys 2023 R1 continues expanding toolsets for Additive Manufacturing users, streamlining design, simulation, and manufacturing workflows. Adding new wizards for distortion compensation and scan pattern-based calibration automates the simulation setup process, reducing the need for lengthy manual setup.
Automated optimization for the first-time-right printing
An enhanced and automated Distortion Compensation wizard within Ansys Mechanical reduces setup time by 50% by eliminating time-consuming manual processes for optimized geometry to print for metal AM. An optimized loop removes the need to run iterations manually by enabling users to set tolerance ranges, allowing the algorithm to provide an optimized geometry.
Increased fidelity
Boost the fidelity of simulations by simulating the exact laser paths used for Laser Powderbed Fusion (LPBF) by integrating the Build File Reader into Mechanical. Loading the identical scan paths enhances print success and process understanding by removing the need to ignore the anisotropic deformation of a part or estimate a generic laser path.
Simplification of the calibration process
Using the new Scan Pattern-based Calibration Wizard in Mechanical simplifies the calibration process for anisotropic simulation. Leverage the increased fidelity with Scan Pattern and Build File-based simulations without increasing the manual effort to establish valid calibration criteria.
Powder Bed Fusion (PBF) is a metal additive manufacturing technology using a bed of powder with a source of heat to create metal parts.

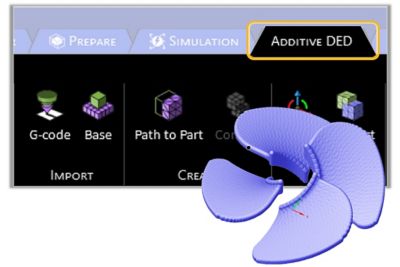

Directed Energy Deposition is a 3D manufacturing process combines metal feedstock and a laser to fabricate parts.
Metal Sintering micro-welds powdered metals to form metal components.

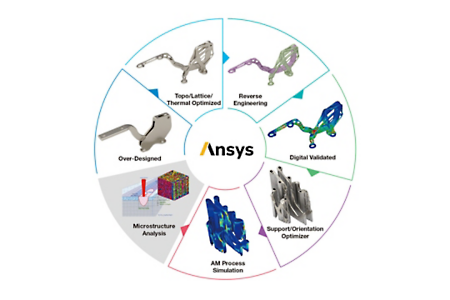

Additive Suite spans the entire workflow – from design for additive manufacturing (DfAM) through validation, print design, process simulation and exploration of materials.
Additive Suite includes:
Choose parts correctly the first time on Metal AM Equipment with Additive Print, a standalone solution for Additive Manufacturing Process simulations.
The leading system for materials information, GRANTA MI Enterprise allows you to develop and protect your materials, save time, drive innovation, cut costs and eliminate risk.
Our innovative interface for 3D design engineers combines live physics simulation, high-fidelity results and direct modeling.
Ansys Additive Solutions, a comprehensive and scalable software solution, enables minimized risk while ensuring high-quality, certifiable parts.
