Ansys SCADE Architect Configurator

Course Overview

Ansys SCADE Architect Configurator is a module that allows Methods and Tools Engineers to configure the Ansys SCADE Architect Advanced Modeler to manage domain-specific objects.

This advanced training course provides users with skills to define new domain specific languages by extending the Ansys SCADE Architect meta-model. You will learn to create a user-defined configuration to customize diagram palettes, menus, and property pages with new concepts, to verify the configuration using preview models, and to deploy configuration plug-ins.

Core Topics

  • Implementation of a configuration in a meta-model design:
  • Customization of diagram palettes and pop-up menus with a set of new items corresponding to business concepts brought by the configuration profile
  • Definition of creation commands accessible from contextual pop-up menus
  • Definition of property pages for each business concept and their respective properties
  • Verification of the configuration in the preview model
  • Resources generation, build and deployment of the configuration plug-in
  • Use of a configuration in a SCADE Architect design

Prerequisites

Target Audience

System Engineers / Software Architects

Teaching Method

Lectures and computer practical sessions to validate acquired knowledge.

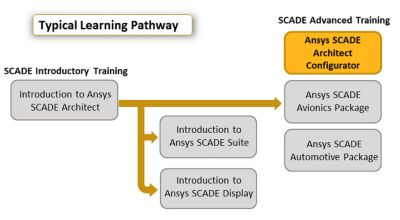

Learning Pathway


Learning Outcome

Currently, no Learning Outcome available

 Available Dates

Currently, no training dates available

Learning Options

Training materials for this course are available with a Ansys Learning Hub Subscription. If there is no active public schedule available, private training can be arranged. Please contact us.

Agenda

This is a 1 day classroom course covering both lectures and workshops.
