Wireless Charging Simulation
Wireless Power Transfer
Ansys offers a full end-to-end wireless power supply system analysis with physics-based system modeling.
ANSYS APPLICATIONS
Design for Wireless Charging
As requirements for wattage and power densities increase, designing for higher efficiency and optimized thermal performance becomes critical for meeting tomorrow’s consumer needs.
Developing a design for an efficient and reliable wireless charging device depends on ability to model the electromagnetic and thermal performance of the transmit and receiver coils, as well as inclusion of the controls and power electronics.
Ansys solutions incorporate magnetic, thermal, and electrical system performance and enable the design optimum wireless chargers for electric vehicles, consumer electronic and medical devices.
-
Coil Design Optimization
-
Thermal Analysis
-
Controls and Power Electronics
-
System Design and Optimization
Reduced time to market
Automatic adaptive meshing ensures designers have an accurate, efficient, and appropriate finite element mesh for the physics being solved, regardless of the geometry and resulting field concentrations; this ensures the engineers can design the product and not design the mesh. An integrated tool suite in the Ansys Electronics Desktop ensures model sharing and consistency of design iterations.
Increase Efficiency & Range
Optimal magnetic design ensures maximum efficiency for a given design at recommended or non-ideal distances.
Changes in ferrous concentrators, shielding, or coil design will impact the performance of the device.
Factors such as unintentional external ferrous or conductive objects may reduce efficiency, and these can be studied with simulation.
Transmit and receiver coil misalignment will cause a reduction in efficiency.
Reducing Cost
Ansys Simulation can be used to consider design cost reductions through shape and topology studies as well as tradeoffs in performance vs dollar cost for different materials. Changing materials of an existing design may impact the performance, cost, lifetime and potentially increase warranty costs. Assessment of these changes using simulation reduces risk.
Superior Product Design
Wireless Charging devices require electromagnetic, thermal, electronics, structural integrity. Ansys provides a full suite of simulation tools to help get designs to market faster.
Featured Products
用于电机和机电设备的电磁场仿真求解器。求解静态、频域和时变电场。
- 2D和3D电磁FEA
- 组件到系统 - 降阶建模
- 高级电磁材料
- 自动自适应网格划分
- 多物理场分析
- Slice-only 技术
用于电子热管理的计算流体动力学（CFD）求解器。它可以预测IC封装、PCB、电子装配体、外壳和电力电子设备中的气流、温度和热传递。
- 非结构化、贴体网格划分
- 内置高保真度CFD求解器
- 综合全面的热可靠性解决方案
- 行业领先的多尺度多物理场
- 板级电热耦合
- 丰富的热物理库
用于设计高频和高速电子元件的 3D 电磁场求解器。其 FEM、IE、渐近和混合求解器可解决 RF、微波、IC、PCB 和 EMI 问题。
- 解决多层封装
- PCB 和封装的 3D 布局工作流程
- 高频电磁求解器
- 通过 3D 组件进行 IP 保护
Better and Faster Design of Wireless Charging Systems
Wireless charging systems face electromagnetic, thermal and Power Electronics design challenges. To reach the stringent design goals, customers require robust Multiphysics simulation approaches.
Electromagnetic Performance Through Inductive Coupling
Maxwell’s finite element method technique uses automatic adaptive meshing technology to predict coil coupling inductance for any sized coil under any misalignment condition. It includes effects of permanent magnets, magnetic materials, and losses due to eddy effects in conductive shields or nearby objects unprotected from stray fields that may emanate outside the device footprint.

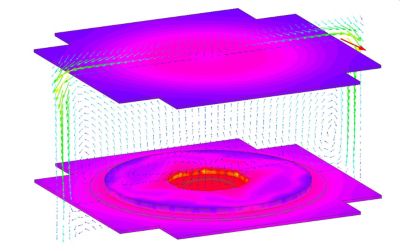

Temperature Prediction of Transmit and Receive Coil Structures
Transmitting power, even wirelessly, will generate heat in transmitting and receiving coils, as well as in the magnetic and conductive parts of the wireless charging devices. Heat may also be generated unintentionally in nearby parts. Predicting where heat originates and designing for thermal performance under different charging loads is imperative for optimum designs to meet or beat temperature limits.
Electrical System Performance
Wireless charging system efficiency depends on many factors, including coil quality factors, losses, and control strategies. Enabling magnetic FEA reduced order models for circuit and system simulation allows for accurate prediction of system efficiency as well as power electronics topologies for sensing and controls. This workflow enables engineers to achieve new power levels, higher efficiency, and reduce product cost of new or existing designs.
Featured Webinars
Webinars
Webinar on Demand
Wireless Charging Systems – Create Better Designs Through Simulation
Learn how to model and analyze inductive-based wireless charging systems using Ansys Maxwell for optimum design.
On Demand Webinar
Modeling Inductive-Based Wireless Power Transfer Using Ansys Maxwell
Inductive-based wireless power systems are used to charge biomedical implants, consumer electronics, and even electric vehicles; this approach can be advantageous since it does not require electrical contacts to transfer power. Design goals usually include maximizing efficiency to reduce charge times, which requires accurate modeling of the magnetic performance of the coils (including flux concentrators and magnetic shielding), power electronics, controls and thermal performance.
On Demand Webinar
Wireless Power Transfer: Efficient Modelling Solutions For EV
Watch this webinar on wireless power transfer to learn from our experts about effective solutions leveraging electromagnetic induction and magnetic resonance techniques. Find out about the design of wireless power transfer systems and simulation strategies for analyzing efficiency of power transfer.
