Ansys offers a full end-to-end wireless power supply system analysis with physics-based system modeling.
As requirements for wattage and power densities increase, designing for higher efficiency and optimized thermal performance becomes critical for meeting tomorrow’s consumer needs.
Developing a design for an efficient and reliable wireless charging device depends on ability to model the electromagnetic and thermal performance of the transmit and receiver coils, as well as inclusion of the controls and power electronics.
Ansys solutions incorporate magnetic, thermal, and electrical system performance and enable the design optimum wireless chargers for electric vehicles, consumer electronic and medical devices.
Automatic adaptive meshing ensures designers have an accurate, efficient, and appropriate finite element mesh for the physics being solved, regardless of the geometry and resulting field concentrations; this ensures the engineers can design the product and not design the mesh. An integrated tool suite in the Ansys Electronics Desktop ensures model sharing and consistency of design iterations.
Optimal magnetic design ensures maximum efficiency for a given design at recommended or non-ideal distances.
Changes in ferrous concentrators, shielding, or coil design will impact the performance of the device.
Factors such as unintentional external ferrous or conductive objects may reduce efficiency, and these can be studied with simulation.
Transmit and receiver coil misalignment will cause a reduction in efficiency.
Ansys Simulation can be used to consider design cost reductions through shape and topology studies as well as tradeoffs in performance vs dollar cost for different materials. Changing materials of an existing design may impact the performance, cost, lifetime and potentially increase warranty costs. Assessment of these changes using simulation reduces risk.
Wireless Charging devices require electromagnetic, thermal, electronics, structural integrity. Ansys provides a full suite of simulation tools to help get designs to market faster.
An electromagnetic field simulation solver for electric machines and electromechanical devices. Solve static, frequency-domain and time-varying electric fields.
A computational fluid dynamics (CFD) solver for electronics thermal management. It predicts airflow, temperature and heat transfer in IC packages, PCBs, electronic assemblies, enclosures and power electronics.
A 3D electromagnetic field solver to design high-frequency and high-speed electronic components. Its FEM, IE, asymptotic and hybrid solvers address RF, microwave, IC, PCB and EMI problems.
Wireless charging systems face electromagnetic, thermal and Power Electronics design challenges. To reach the stringent design goals, customers require robust Multiphysics simulation approaches.

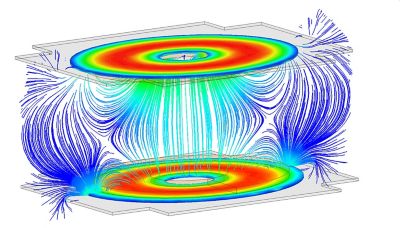

Maxwell’s finite element method technique uses automatic adaptive meshing technology to predict coil coupling inductance for any sized coil under any misalignment condition. It includes effects of permanent magnets, magnetic materials, and losses due to eddy effects in conductive shields or nearby objects unprotected from stray fields that may emanate outside the device footprint.
Transmitting power, even wirelessly, will generate heat in transmitting and receiving coils, as well as in the magnetic and conductive parts of the wireless charging devices. Heat may also be generated unintentionally in nearby parts. Predicting where heat originates and designing for thermal performance under different charging loads is imperative for optimum designs to meet or beat temperature limits.
Wireless charging system efficiency depends on many factors, including coil quality factors, losses, and control strategies. Enabling magnetic FEA reduced order models for circuit and system simulation allows for accurate prediction of system efficiency as well as power electronics topologies for sensing and controls. This workflow enables engineers to achieve new power levels, higher efficiency, and reduce product cost of new or existing designs.
Learn how to model and analyze inductive-based wireless charging systems using Ansys Maxwell for optimum design.
Inductive-based wireless power systems are used to charge biomedical implants, consumer electronics, and even electric vehicles; this approach can be advantageous since it does not require electrical contacts to transfer power. Design goals usually include maximizing efficiency to reduce charge times, which requires accurate modeling of the magnetic performance of the coils (including flux concentrators and magnetic shielding), power electronics, controls and thermal performance.
Watch this webinar on wireless power transfer to learn from our experts about effective solutions leveraging electromagnetic induction and magnetic resonance techniques. Find out about the design of wireless power transfer systems and simulation strategies for analyzing efficiency of power transfer.
