Wireless Charging Simulation

Wireless Power Transfer

Ansys offers a full end-to-end wireless power supply system analysis with physics-based system modeling.

ANSYS APPLICATIONS

Design for Wireless Charging

As requirements for wattage and power densities increase, designing for higher efficiency and optimized thermal performance becomes critical for meeting tomorrow’s consumer needs.

Developing a design for an efficient and reliable wireless charging device depends on ability to model the electromagnetic and thermal performance of the transmit and receiver coils, as well as inclusion of the controls and power electronics.

Ansys solutions incorporate magnetic, thermal, and electrical system performance and enable the design optimum wireless chargers for electric vehicles, consumer electronic and medical devices.

  • Check icon outline
    Coil Design Optimization
  • Check icon outline
    Thermal Analysis
  • Check icon outline
    Controls and Power Electronics
  • Check icon outline
    System Design and Optimization
Maxwell Wireless Charging

How do we differentiate?

Wireless Charging Simulation

Reduced time to market

Automatic adaptive meshing ensures designers have an accurate, efficient, and appropriate finite element mesh for the physics being solved, regardless of the geometry and resulting field concentrations; this ensures the engineers can design the product and not design the mesh. An integrated tool suite in the Ansys Electronics Desktop ensures model sharing and consistency of design iterations.

Increase Efficiency & Range

Optimal magnetic design ensures maximum efficiency for a given design at recommended or non-ideal distances.

Changes in ferrous concentrators, shielding, or coil design will impact the performance of the device.

Factors such as unintentional external ferrous or conductive objects may reduce efficiency, and these can be studied with simulation.

Transmit and receiver coil misalignment will cause a reduction in efficiency.

Reducing Cost

Ansys Simulation can be used to consider design cost reductions through shape and topology studies as well as tradeoffs in performance vs dollar cost for different materials. Changing materials of an existing design may impact the performance, cost, lifetime and potentially increase warranty costs.  Assessment of these changes using simulation reduces risk.

Superior Product Design

Wireless Charging devices require electromagnetic, thermal, electronics, structural integrity.  Ansys provides a full suite of simulation tools to help get designs to market faster.

Featured Products

View All Products

Better and Faster Design of Wireless Charging Systems

Wireless charging systems face electromagnetic, thermal and Power Electronics design challenges. To reach the stringent design goals, customers require robust Multiphysics simulation approaches.

Maxwell Wireless Charging
Electromagnetic Performance Through Inductive Coupling

Maxwell’s finite element method technique uses automatic adaptive meshing technology to predict coil coupling inductance for any sized coil under any misalignment condition.  It includes effects of permanent magnets, magnetic materials, and losses due to eddy effects in conductive shields or nearby objects unprotected from stray fields that may emanate outside the device footprint.

Maxwell Wireless Charging

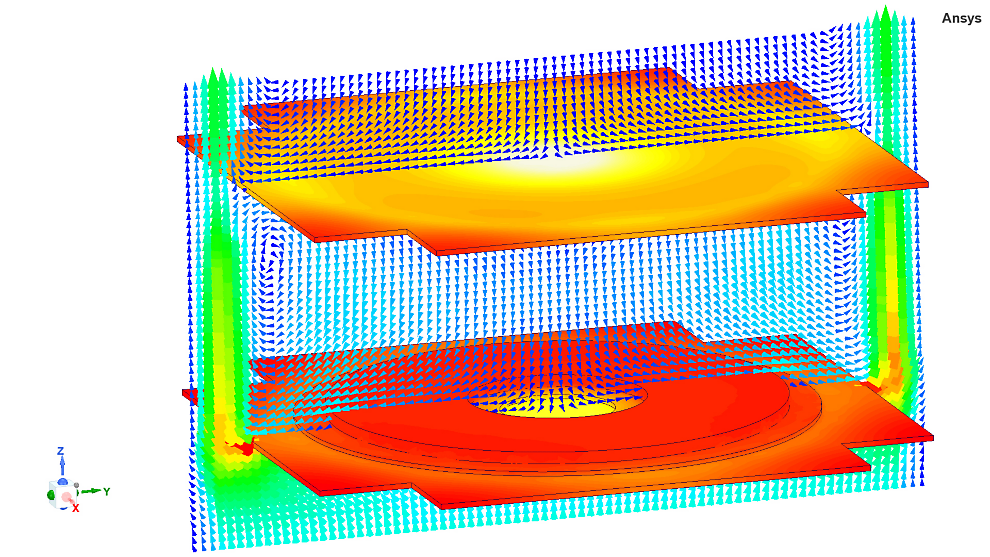

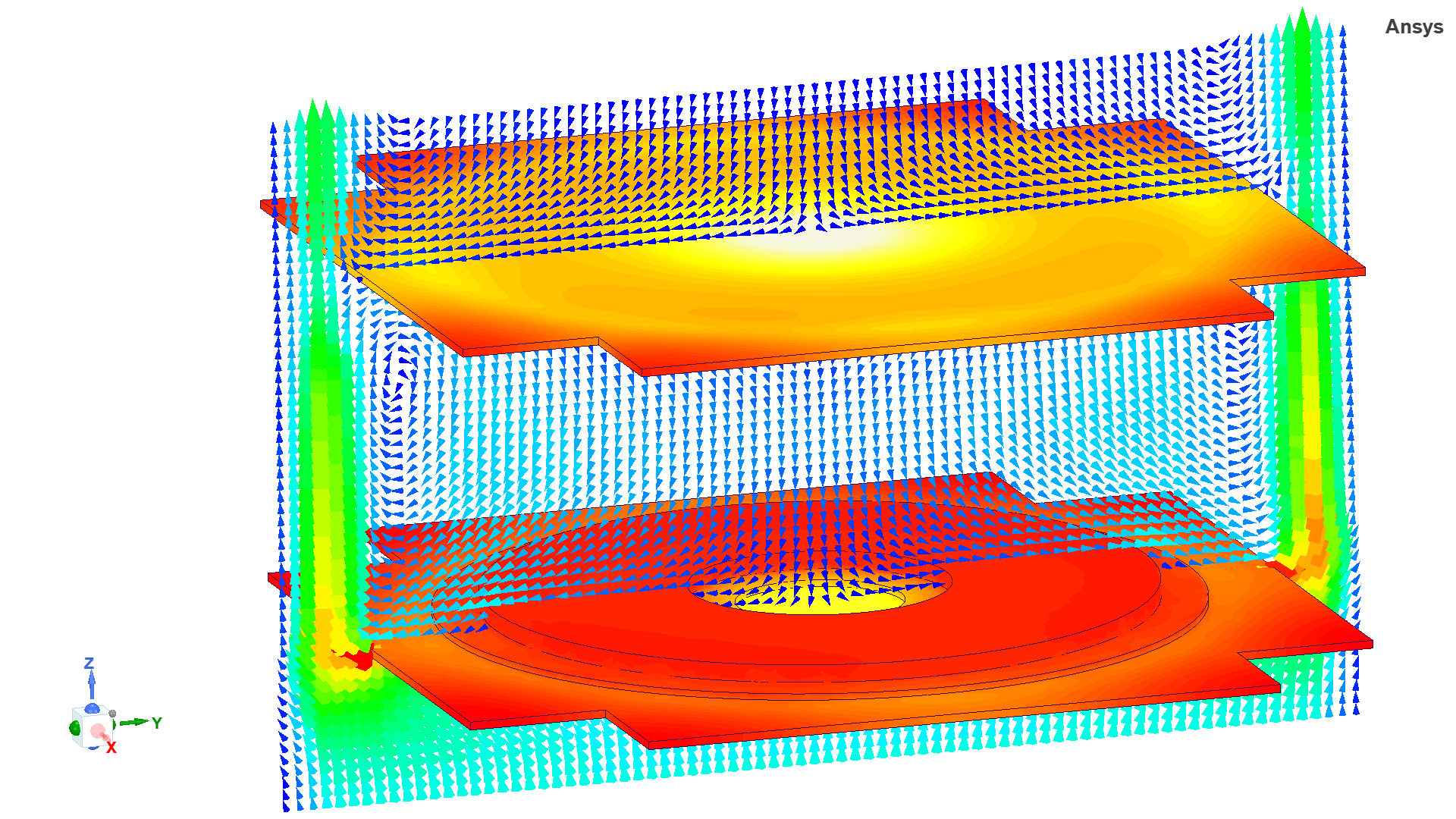

Temperature Prediction of Transmit and Receive Coil Structures

Transmitting power, even wirelessly, will generate heat in transmitting and receiving coils, as well as in the magnetic and conductive parts of the wireless charging devices.  Heat may also be generated unintentionally in nearby parts.  Predicting where heat originates and designing for thermal performance under different charging loads is imperative for optimum designs to meet or beat temperature limits.

Maxwell Wireless Charging
Electrical System Performance

Wireless charging system efficiency depends on many factors, including coil quality factors, losses, and control strategies.  Enabling magnetic FEA reduced order models for circuit and system simulation allows for accurate prediction of system efficiency as well as power electronics topologies for sensing and controls.  This workflow enables engineers to achieve new power levels, higher efficiency, and reduce product cost of new or existing designs.

Featured Webinars

Webinars

Webinar on Demand
Ansys On Demand Webinar
Wireless Charging Systems – Create Better Designs Through Simulation

Learn how to model and analyze inductive-based wireless charging systems using Ansys Maxwell for optimum design.

On Demand Webinar
Ansys On Demand Webinar
Modeling Inductive-Based Wireless Power Transfer Using Ansys Maxwell

Inductive-based wireless power systems are used to charge biomedical implants, consumer electronics, and even electric vehicles; this approach can be advantageous since it does not require electrical contacts to transfer power. Design goals usually include maximizing efficiency to reduce charge times, which requires accurate modeling of the magnetic performance of the coils (including flux concentrators and magnetic shielding), power electronics, controls and thermal performance.
