Modeling & Simulation of Heat Exchangers
Optimize heat exchanger design for performance and energy efficiency, material selection, durability and life prediction under harsh conditions.
ANSYS APPLICATIONS
Cost-Effective Performance and Durability

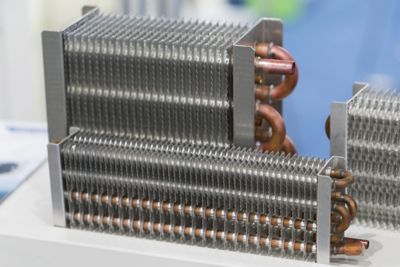

Used in a variety of settings across a range of scales, heat exchangers must perform reliably, often in harsh conditions, and be durable enough to operate effectively despite extremes of cyclical thermal loading—sometimes for years without replacement. Simulation offers a critical tool to optimize heat exchange performance, select the most appropriate materials and predict durability and life. Ansys heat exchanger simulation application capabilities provide that reliability.
-
Diffuser and Tube Thread Shape Optimization
-
Condensation and Evaporation
-
Conjugate Heat Transfer
-
Integration with the Overall System Model
-
Hot and Cold Cycle Fatigue
""
Shape Optimization

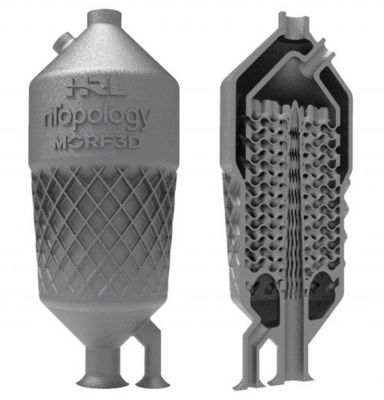

Heat exchanger shape selection can be optimized by leveraging parameters, adjoint methods and response surfaces.
Conjugate Heat Transfer

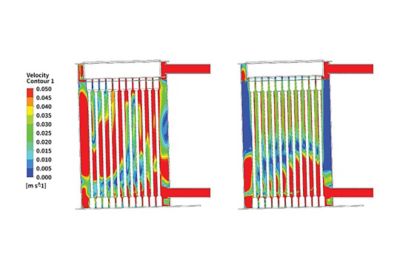

Performing steady or transient conjugate heat transfer simulations determines heat exchanger performance and the impact of thermal stresses. Models can include fluid structure interaction, fatigue life prediction and multiphase boiling, condensation and evaporation.
System Level Integration
Using reduced order models (ROMs), high-fidelity physics simulations integrate with overall system level models for process integration and design optimization (PIDO).
Featured Products
Fluids
CFD software known for its advanced physics modeling and renowned for industry leading accuracy.
- Modern user-friendly interface
- Single window workflow—pre to post-processing
- Streamlined meshing and physics workflows
- Advanced physics modeling
- Efficient meshing and solver HPC scaling
Structures
Solve broad structural analysis needs with a suite of finite element analysis (FEA) solutions that provides in-depth analysis of structural and coupled-field behaviors.
- Easy to Use, Multi-Purpose Tool
- Persistent, Dependable Solver Technology
- Dynamic, Integrated Platform
Digital Twin
Ansys Twin Builder is a powerful solution for building, validation and deploying simulation-based systems and digital twins:
- Build, Validate, and Deploy Digital Twins
- Digital Twin Models Integrate Real-World Data
- Increase Efficiency With Digital Twins
- Virtual Prototype of a Deployed System
- Advanced Asset Management With Digital Twins
- Ansys Systems-Level Simulation Know-How
Platform
Ansys Minerva is a centralized simulation knowledge management application available for both on-premises and cloud deployment.
- Simulation data traceability
- Optimization, productivity, repeatability and data quality
- Vendor-neutral architecture
- Best practices capture and deployment
Platform
Ansys optiSLang allows vendor-neutral process integration for evaluation of optimal product design alternatives for cost and performance
- Integration of all CAx tools
- Accelerated searches for robust design optimization
- Interactive visualization
- Simulation process sharing

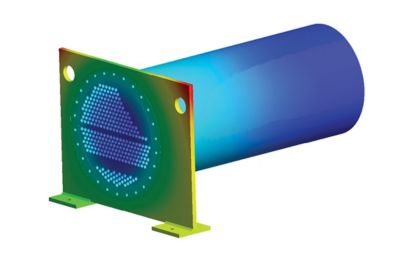

“Using Ansys for pressure vessel and exchanger analysis provides the robustness and reliability needed to solve the large, complex models.”
