Strip Footing Modeling using Ansys Mechanical Software

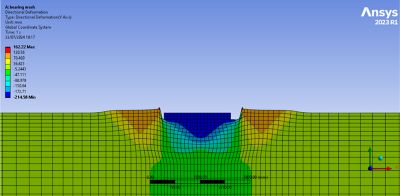

This tutorial outlines a step-by-step process for performing a finite element simulation of a strip footing using Ansys Mechanical™ structural finite element analysis software and Ansys Discovery™ 3D product simulation software. It covers key stages including material definition, geometry creation, meshing, application of boundary conditions, solving the model, and analyzing the results. The example focuses on modeling a strip footing and demonstrates how to assess stresses, deformations, and bearing capacity, providing a practical foundation for similar geotechnical analyses.

Learning Outcomes

  • Develop and understanding of the bearing capacity problem in shallow foundations.
  • Acquire the ability to model 2D bearing capacity problems using Ansys Workbench software.
  • Perform comparisons between numerical results and classical limit-state analytical solutions.

Applicable Courses for Use

  • Soil Mechanics
  • Structural Mechanics
  • Geotechnical Engineering

Related Resources

Ansys Mechanical Slope Stability Analysis

Model Water Flow in Soil with Ansys Tools

Downloadable Content

  • Tutorial PDF
Strip Footing Tutorial webpage
