Parallel-Plate Capacitor Simulation using the Ansys Maxwell Software

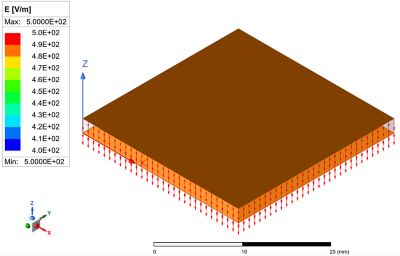

Designed for educators, this resource offers a step-by-step guide to simulate a parallel-plate capacitor, computing the capacitance and the electric field in Ansys Maxwell®, an advanced electromagnetic field solver, and comparing the simulation results with analytical calculations. The design of the capacitor is also addressed by performing a parametric analysis with respect to the distance between plates. This practical resource allows students to bridge theoretical concepts with real-world applications, while also learning how to validate their results using industry-standard software. Perfect for enhancing classroom instruction and deepening students' understanding of electromagnetic principles.
Learning Outcomes
- Grasp fundamental principles of electrostatics.
- Learn to model and analyze a parallel-plate capacitor using Ansys Maxwell software in AEDT.
- Simulate and validate electric fields using industry software to compare with theoretical calculations.
Downloadable Content
PowerPoint tutorial document
Applicable Courses
- Electromagnetics
