Simulating a Forging Process in Ansys Mechanical Software

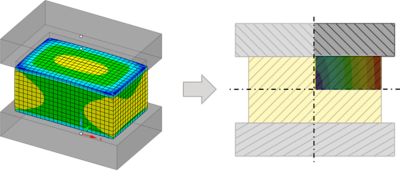

This tutorial introduces the simulation of a 2D plane‑strain forging process using Ansys Mechanical structural simulation software, combining analytical derivations with numerical finite element analysis. It explains key concepts such as frictional and frictionless contact, bilinear isotropic hardening, symmetry reduction, and the transition from physical principles to matrix‑based FEA formulation. The analytical pressure distribution for forging—derived using slab theory and Coulomb friction—is presented as a benchmark for validating simulations. The tutorial demonstrates step‑by‑step model setup, meshing, boundary conditions, solver controls, and post‑processing for two cases: μ = 0 and μ = 0.1. Results show excellent agreement for the frictionless case and explain deviations in the frictional case due to geometric changes, strain hardening effects, and stick‑slip transitions. The presentation concludes with guidance on interpreting deformation and stress patterns and emphasizes best practices for nonlinear contact and material modeling in metal forming.
Learning Outcomes
- Understand plane-strain forging principles and friction effects in finite element analysis.
- Set up and run forging simulations in Ansys Mechanical using proper materials and contact models.
- Compare numerical results with analytical solutions to validate manufacturing process simulations.
Applicable Courses for Use
- Mechanics of Materials/Strength of Materials
- Design and Manufacturing
Related Resources
Intro to 1D FEA with Ansys Mechanical | Education Resources
2D and 3D FEA with Ansys Mechanical | Education Resources
Basics of FEA with Ansys Mechanical | Education Resources
Downloadable Content
- Simulation tutorial
- Simulation files
