Design Your First Lens: Intro to Imaging Systems Using Ansys Zemax OpticStudio

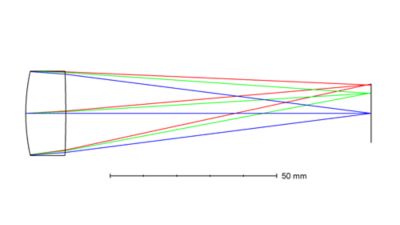

This introductory tutorial offers a clear, structured approach to designing a basic imaging system using the Sequential Mode in Ansys Zemax OpticStudio® optical system design and analysis software. Tailored for complete beginners, it walks through the creation and optimization of a single-lens system, providing a practical foundation for understanding optical design principles. While the example is simple, the concepts introduced underpin advanced applications such as smartphone camera lenses and medical imaging technologies like optical coherence tomography. To support teaching and learning, the resource includes ready-to-use slides with detailed instructor notes, discussion prompts, and mini exercises that encourage active engagement. By the end, students will not only follow the design process but also develop confidence in solving fundamental imaging system problems independently, building essential skills for future optical engineering challenges.

Learning Outcomes

• Set up and configure an optical system in OpticStudio
• Analyze and interpret system performance using OpticStudio tools
• Optimize an optical system to meet design goals

Applicable Courses for Use

• Introduction to Optics and Photonics
• Imaging Systems

Related Resource(s)

Lens Design in Ansys Zemax OpticStudio | Education Resources

Introduction to Optics with Ansys Tools | Education Resources

Downloadable Content

• Tutorial file PowerPoint
