Industrial Flow Networks

Ansys Digital Twin for flow networks to integrate model-based design, simulation and actual asset performance.

ANSYS APPLICATIONS

Build, Validate, Deploy Your Industrial Flow Network

Leverage Ansys solutions to produce the next generation of industrial flow network applications.


With decades of experience in multiphysics problems, Ansys has the expertise to help its customers quickly assess the potential impact of improvements. We work jointly on Proof of Value implementations, and then develop an agile strategy to help customers deploy their digital twins across the enterprise — at the edge or in the Cloud. This approach drives increasing business value over the entire life cycle — from concept to specification, commissioning, manufacturing, and operations and maintenance.

  • System configuration
    System configuration
  • Predictive and prescriptive maintenance
    Predictive and prescriptive maintenance
  • Performance optimization
    Performance optimization
Industrial Flow Network Overview

Ansys Digital Twin for Industrial Flow Networks

Ansys Digital Twin for Industrial Flow Networks

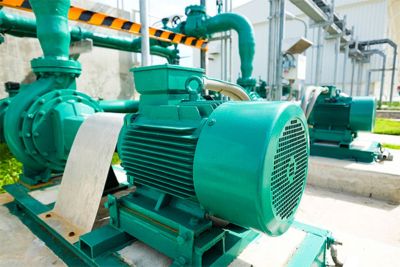

Fluid Networks

A Digital Twin of a fluid network provides insight into  operations, boosts energy efficiency and detects component failures before they occur.

Ansys Digital Twin for Industrial Flow Networks

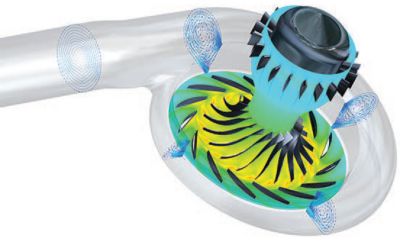

Rotating Machinery

A Digital Twin helps with safe and economic operation of rotating machinery, increases energy efficiency, and lengthens individual component life by detecting cavitation.

Ansys Digital Twin for Industrial Flow Networks

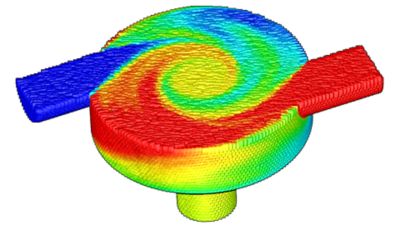

Mixing/Blending Process

A Digital Twin of the blending process augments available sensor streams with virtual sensors that help to predict blend quality. In addition, issues such as insufficient pressure/flow can be quickly detected and remedied in near real-time to ensure efficient blending.

Efficient Industrial Flow Network Applications

Digital Twin Solutions Industrial Flow. Network

20% Reduction in maintenance costs

Connect and deploy to supported industrial internet of things (IIoT) platforms. Ansys Twin Builder is the first software solution to automate the connection of a digital twin to a working product.

Once the connection is made, maintenance costs can be reduced up to 20%.

2X Faster

Reduce the time involved in creating an accurate product model compared to manual methods.

25% Improvement

Connect and deploy to supported industrial internet of things (IIoT) platforms. Ansys Twin Builder is the first software solution to automate the connection of a digital twin to a working product.

Once the connection is made, maintenance costs can be reduced up to 20%.

Featured Products

View All Products

Optimize Product Performance of Industrial Flow Networks with Simulation

Creating a digital twin to increase product performance remains a challenging and costly process. Ansys offers a best-in-class multiphysics simulation solution to build, validate and deploy simulation-based digital twins of all industrial flow network applications. The end-to-end solution helps industrial players to track the past, provide deeper insights into the present, and predict and influence future behavior.

Digital Twin Solutions for Industrial Flow Network Applications

Ansys Digital Twin Solutions for Industrial Flow Network Applications

Learn about Ansys Digital Twin solutions for industrial flow network applications with examples from the oil & gas and process industries, including multiple-use cases like system configuration, predictive and prescriptive maintenance and production optimization.

Harnessing the Power of The Twin Builder

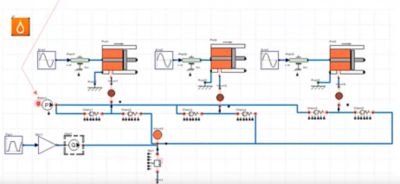

Harnessing the Power of the Ansys Twin Builder Fluid Power Library to Quickly Build Systems Models and Digital Twins

Hydraulic and pneumatic systems are found in a variety of industrial applications, including drills, hammers, excavators, brakes, dampers, gearboxes, suspensions in automobiles, and actuators and landing gears in aircraft. With the Ansys Twin Builder Fluid Power Library — comprising Modelon’s industry-leading pneumatics and hydraulics libraries — you can integrate pneumatic and hydraulic components and systems within your systems models for simulation and digital twins.

Edge Computing Digital Twin

Edge Computing: New Support for Digital Twins

Ansys Twin Builder is built to leverage and integrate with customers’ existing technology assets, including embedded software, 1D and 3D models, and linkages to a broad range of IIoT platforms. Twin Builder’s support for multiple modeling domains and languages ― as well as its intuitive interface ― make it seamless and straightforward to create, verify and deploy a digital twin for virtually any customer application.

Ansys Offers Best-in-Class Industrial Flow Networks Performance Solution

Ansys Twin Builder provides unique capabilities to quickly build, validate and deploy simulation-based digital twins. Twin Builder combines the speed of system-level simulation with the accuracy of 3D physics solvers and allows the reuse of existing components. It helps validate and optimize system models and generates compact runtimes that can be easily integrated with supported IIoT platforms.

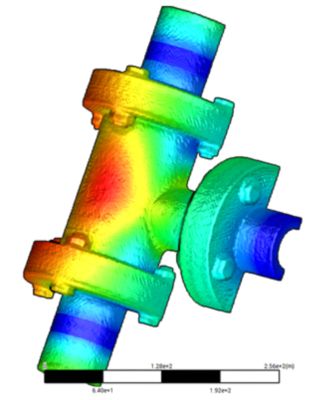

  1. Best in class ROM capabilities enables reuse.
  2. Unique runtime model enables scaling.
  3. Open architecture enables faster adoption.
Ansys Digital Twin for Industrial Flow Networks
