November 1, 2019
Engineers understand that shape and material selection are critical to the optimal design of structural parts, such as I-beams.
Science, technology, engineering and math (STEM) students, however, might not know why certain shapes or materials are advantageous for a given situation.

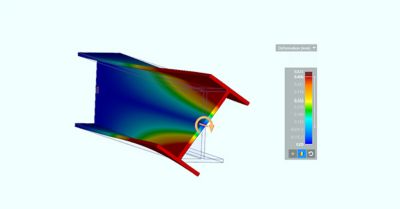

A beam’s torsional strength is dependent
on its shape and material selection
Material properties (such as stiffness and strength) and the beam shape (dimensions, second moment of area and shape factor) must be fully understood when making design choices.
CES EduPack, available in the Ansys Granta family of material intelligence software, can help STEM students learn about material properties and structural sections. For instance, when CES EduPack is combined with finite element analysis, through Ansys Mechanical or Ansys Discovery, students can explore the complex interactions between a design’s shape and material selection.
The number of beam shape and material combinations are vast; where do engineers begin when making design decisions?
The front face of structural shapes
CES EduPack contains the structural information of various beams created by common shapes and materials, including (but not limited to):

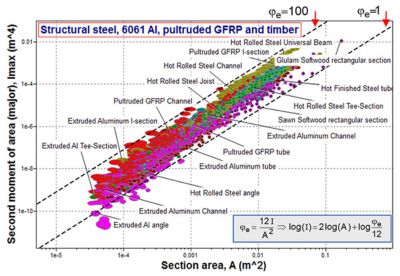

CES EduPack can compare various structural shapes and materials in one plot
Through advanced plotting capabilities, CES EduPack can be used to compare different structural materials. However, the shape factor needs to be considered to make a proper material selection. Though the software can account for some shape parameters (such as second moment of area and section area) some dimensions and design parameters will still need to be determined.
Finite element analysis (FEA) is a technique that simulates a structure’s response to specific loading conditions. During the design process, engineers can create computer-aided design (CAD) drawings and simulate the loads to understand a part’s stress concentrations and deformations. This gives the engineer detailed material requirements based on all of the beam’s dimensions and design parameters. These simulations can be performed using Mechanical and Discovery Live.

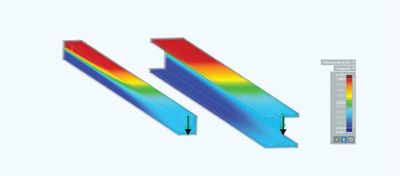

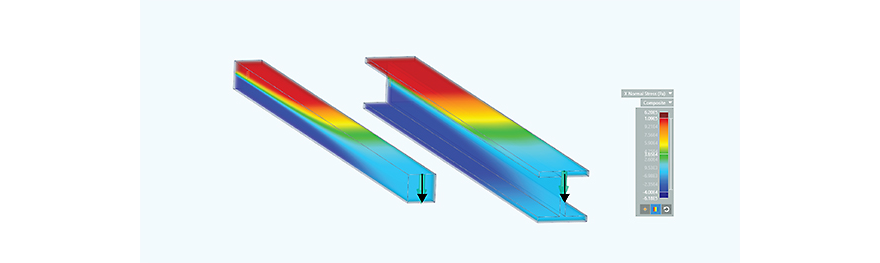

Ansys Discovery Live simulation compares the stress concentrations
of two beams with equal cross-sectional areas under equal loads
The accuracy of simulations depends on the quality of the material property information. However, gaining access to accurate material property information can be challenging. Therefore, the best way to understand the design and material selection of a structural beam is by combining the power of CES EduPack and FEA.
To see a practical example that can be used in a STEM classroom, read the case study: Material Properties and Structural Sections.
