Functional Safety Analysis for Semiconductors

Ansys medini analyze supports key safety analysis methods at various levels of a chip, ranging from IP Design of integrated components, up to SoCs and electronic boards.

SEMICONDUCTOR-LEVEL SAFETY ANALYSIS

Semiconductor Analysis Integrated With Overall Systems Analysis

Ansys medini analyze supports best-practice workflows that graphically link specific areas of the semiconductor design to key functions within the electronics architecture. This allows engineers to analyze and address potential failure modes as they verify the functional safety of semiconductor components. Engineers can efficiently and consistently execute the safety-related activities such as the FMEDA, required by safety standards like ISO 26262: 2018 part 11.

  • Check icon outline
    Failure Rate Prediction
  • Check icon outline
    Map Chip Design to Functions
  • Check icon outline
    Failure Mode Effect and Diagnostic Analysis
  • Check icon outline
    Digital and Analog Chip Analysis

Quick Specs

Streamline and automate functional safety analysis across the entire electronics architecture — including down to the chip level. Any inconsistencies in the functional safety analysis are eliminated, and confirmation reviews and assessments are accelerated.

  • Failure Rate Distribution by Die Area
  • Requirement Traceability
  • IP Design Import
  • Determine and Analyze Potential Failure Modes
  • FMEDA
  • Safety Mechanism Design
  • Map Blocks of the Semiconductor Design to System Functions
  • Transient Failure Analysis
  • Diagnostic Coverage Analysis

Ansys + ZF Group

ZF Group Harmonizes and Accelerates Functional Safety Analysis with Ansys medini analyze.

Ansys Materials 2022R2 Update
“Ansys medini analyze helped us to provide functional safety analysis for hardware, software and systems based on and fully compliant to architecture models.”

—Günter Gäbelein, Safety Assessor / ZF Friedrichshafen AG

According to Günter Gäbelein, Safety Assessor at ZF Friedrichshafen AG, “As a systems supplier for passenger cars, commercial vehicles, and industrial technology, ZF Friedrichshafen AG places great emphasis on agility and innovation. To support exciting developments like autonomous driving and electric mobility, our R&D process must be fast, cost effective, and technically precise. More and more projects are taking advantage of synergies provided by medini analyze. In a medium-size project, more than 300 hours of effort can be saved by the one-tool solution and the interfaces to third-party tools for architectures. ZF is a strong advocate for model-based engineering, and medini analyze helps to reduce the complexity of analysis for embedded systems."

Applications

View all Applications

Autonomous System Development

Model-based safety and cybersecurity assessments using Ansys simulation help to accelerate autonomous system development and certification.


Electronics Reliability

Learn how Ansys integrated electronics reliability tools can help you  solve your biggest thermal, electrical and mechanical reliability challenges.

medini semiconductors

CAPABILITIES

Ansys medini analyze for Semiconductors Facilitates Analysis at Various Levels of a Chip

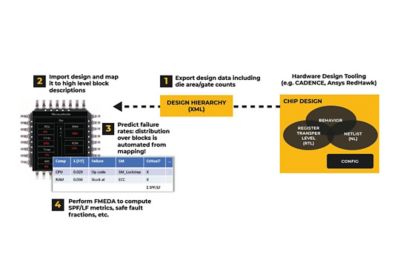

With Ansys medini analyze for semiconductor safety, seamlessly exchange IP design between hardware designers and safety analysts. Engineers can perform derivation of base failure rates for a hardware design, automatic determination of failure distributions based on design data (e.g., die area, gate counts), as well as FMEA, FMEDA and FTA analysis based on the hardware design. Teams can reuse and adapt FMEDA data from previous designs and export configurable FMEDA result data for the handover of safety data to integrators.



Key Features

By reducing development costs and time to market — while maximizing innovation and product confidence — Ansys medini analyze can help companies achieve a significant competitive advantage

  • Model-Based Safety Analysis
  • Integrated Reliability Prediction
  • Teamwork and Supply-Chain Support
  • Traceability and Validation



Implement qualitative methods (e.g., FMEA,  quantitative analysis, failure rate prediction, FMEDA and diagnostic coverage analysis, or FTA), as well as dependent failure analysis. These methods are integrated and carried out at various levels over a consistent set of design models.

ISO 26262 Semiconductor Workflow Ansys medini analyze facilitates ISO 26262 compliance and remains a trusted solution for streamlining and automating functional safety analysis across the entire electronics architecture, down to the chip level.

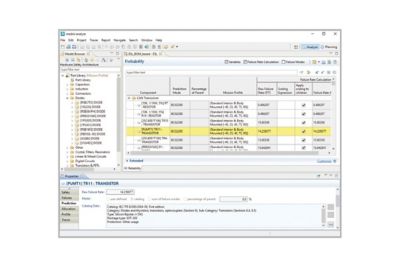

Predict failure rates of your chips using built-in handbooks such as IEC 61709, IEC 62380, SN29500, and many more. Distribute failure rates along die area or element/gate/cell counts of an imported IP design, both for permanent and transient failures. Define stress parameters such as temperature and analyze the impact for FMEDA and PMHF to meet safety and reliability targets.

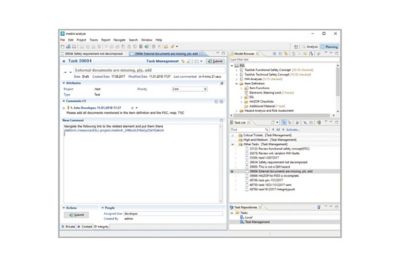

Collaborate as a safety engineering team by sharing, comparing and merging safety projects. Integrate with task management systems for workflow support. Export your safety analysis (e.g. FMEDA) in a configurable way to field teams and customers for adaptation to the target system context

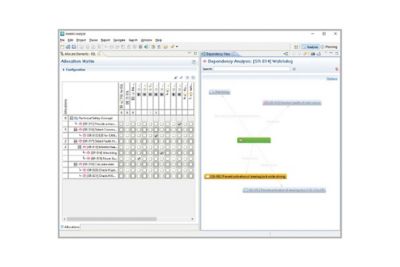

Capture and trace your safety requirements together with your chip design. Import, export and round-trip from/to requirements management for systems (e.g., IBM® Rational® DOORS®, PTC Integrity™, Jama Software) and design tools such as Cadence Incisive Simulator or Synopsys IC Compiler. Validate the standard compliance of your safety mechanisms with fault injection by third-party verification tools.
